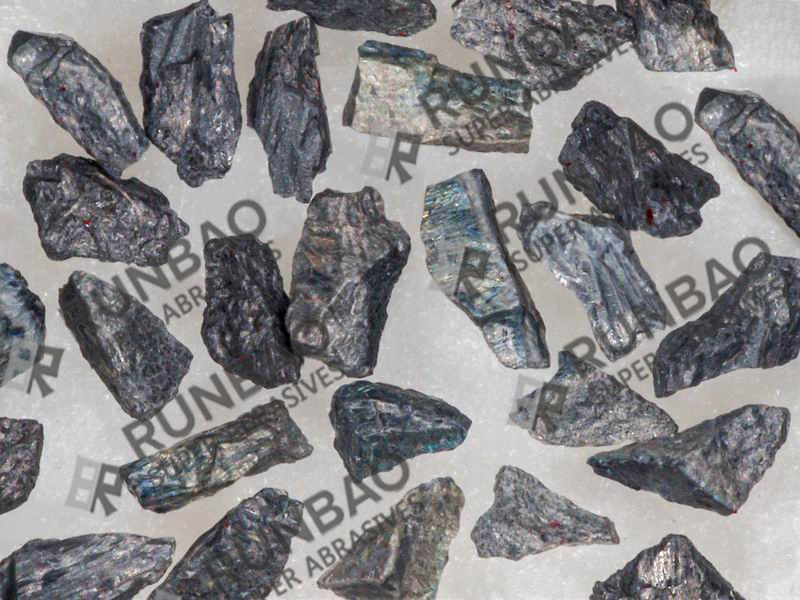

Zirconia Alumina is abrasive eutectic alloy of alumina and zirconia which produced by fused alumina and zirconia at 2900 centigrade.By specially controlling the fusion formula and cooling,it creates very fine micro crystal fracture properties which impact Zirconia Alumina remarkable cutting ability and rapid stock removal rate.With different working materials,Zirconia Alumina bring several times longer life compare with ordinary abrasives.Zirconia Alumina mostly use in stainless steel,high alloy steels and other low thermal releasing grinding system.

By fusion inside different quantity Titanium,we can obtain different tough-sharp balance.

Chemical composition%(Grit 46)

Particle size distribution

F8–F220 are available,PSD according to FEPA standard 42,GB/T 2481.

JIS standard or ANSI standard or customer’s specific required is also available.

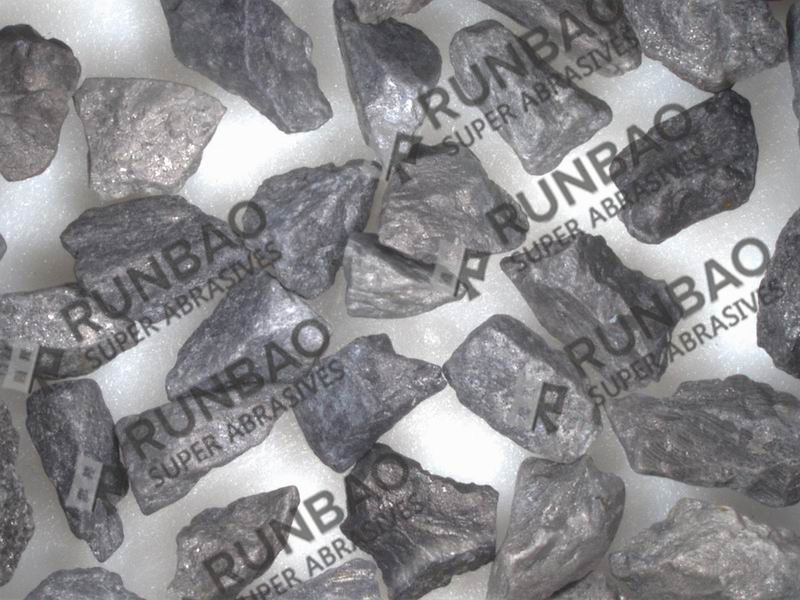

ZAF25 is the most dense and tough abrasive grains which produced by fused alumina and zirconia at 2900 centigrade.With the Alumina-Zirconia eutectic crystalline structure,ZAF25 has extremely high wear resistance which impact the abrasive remarkable tool life.ZAF25 mostly use in foundry-type grinding wheels and steel conditioning wheels.

ZAF25D has more blocky shape than ZAF25.

Chemical composition%(Grit 20)

Particle size distribution

F8–F220 are available,PSD according to FEPA standard 42,GB/T 2481.

JIS standard or ANSI standard or customer’s specific required is also available.
